9 Structure of a DATEX Block

9.1 Overview

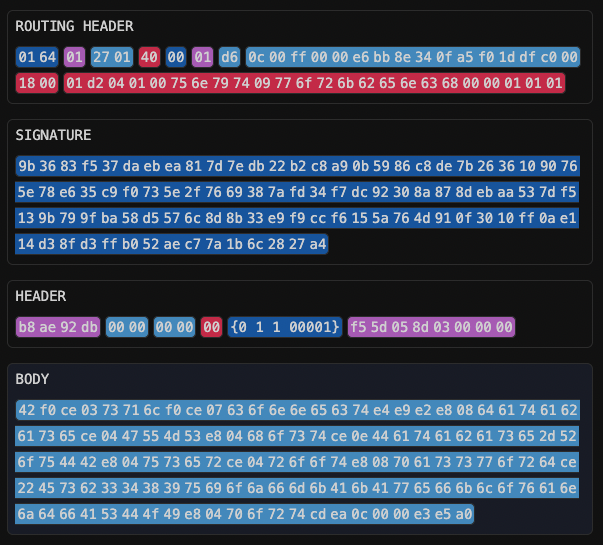

A DATEX Block consists of 4 main sections:

• A Routing Header, which mainly contains information about the sender and receivers of the block, and important information about the block (e.g. block size)
• A Signature, if the block is signed. Everything after this section (Header and Body) is signed by the sender and can also optionally be encrypted
• A Block Header, which contains meta data about the current block (type, timestamp, id, flags)
• A Body, which contains executable DATEX instructions

9.2 The Routing Header

The Routing Header is not encrypted or signed, the content always needs to be parseable by all nodes.

Name	Start	End	Size	Content	Description
Magic Number	0	2	2	01 64	Fixed value (0x01 and 'd')
Version Number	2	3	1	VERSION: Uint8	Version number starting from 0x01
Block Size	3	5	2	SIZE: Uint16	Total block size in bytes
TTL	5	6	1	TTL: Uint8	Time-to-live for this block, get decremented with each node redirection
Priority	6	7	1	PRIORITY: Uint8	Routing priority of this block
Signed / Encrypted	7	8	1	SECURITY: Uint8	0x00: not signed or encrypted, 0x01: signed, 0x02: encrypted, 0x03: signed and encrypted

DATEX.Endpoint {
	TYPE: Uint8
	ID: Uint8[18]
	INSTANCE: Uint16
}

PointerId {
	TYPE: Uint8
	IDENTIFIER: Uint8[18]
	INSTANCE: Uint16
	TIMESTAMP: Uint32 # unix ts in seconds, starting from 25. Juli 23
	COUNTER: Uint8
}

ReceiverEndpoint {
	ENDPOINT: Endpoint
	optional KEY: Uint8[512] # only if Receivers.FLAGS.ENDPOINTS_HAVE_KEYS
}

ReceiverEndpoints {
	COUNT: Uint16 # if MAX, flood, no RECEIVERS
	ENDPOINTS: ReceiverEndpoint[COUNT]
}

Receivers {
	FLAGS: Uint8
		HAS_POINTER_ID:           FLAGS & 0b00000001,
		HAS_ENDPOINTS:            FLAGS & 0b00000010,
		ENDPOINTS_HAVE_KEYS:      FLAGS & 0b00000100
	optional POINTER_ID: PointerId
	optional ENDPOINTS: ReceiverEndpoints
}

RoutingHeader {
	MAGIC_NUMBER: Uint16 {0x01, 0x64},
	VERSION: Uint8,
	TTL: Uint8,
	FLAGS: Uint8
		HAS_UNENCRYPTED_SIGNATURE: FLAGS & 0b00000001,
		HAS_ENCRYPTION:            FLAGS & 0b00000010,
		HAS_ENCRYPTED_SIGNATURE:   FLAGS & 0b00000100,
		IS_LARGE_SIZE:             FLAGS & 0b00001000
	BLOCK_SIZE: IS_LARGE_SIZE ? Uint32 : Uint16,

	SCOPE_ID: Uint32
	BLOCK_INDEX: Uint16
	BLOCK_SUB_INDEX: Uint16

	SENDER_TYPE: Uint8,
	optional SENDER: Uint8[20] # only exists if SENDER_TYPE != 255, otherwise SENDER is @@any
	optional RECEIVERS: Receivers
}

BlockHeader {

	FLAGS: Uint21
		BLOCK_TYPE:    FLAGS & 0b111100000000000000000,
		ALLOW_EXECUTE: FLAGS & 0b000010000000000000000,
		END_OF_BLOCK:  FLAGS & 0b000001000000000000000, # if a subdivided block has only a single signature, it is sent with the last block containing the END_OF_BLOCK flag
		END_OF_SCOPE:  FLAGS & 0b000000100000000000000,
		HAS_EXPIRATION_TIMESTAMP:   FLAGS & 0b000000010000000000000,
		HAS_ON_BEHALF_OF:           FLAGS & 0b000000001000000000000,
		HAS_REPRESENTED_BY:         FLAGS & 0b000000000100000000000,
		IS_COMPRESSED:              FLAGS & 0b000000000010000000000,
		_RESERVED_:    FLAGS & 0b000000000001111111111,
	CREATION_TIMESTAMP: Uint43, # unix ts in ms, starting from 25. Juli 23
	optional EXPIRATION_OFFSET: Uint32, # unix ts in seconds, starting from CREATION_TIMESTAMP
	optional REPRESENTED_BY: Endpoint
	optional IV: Uint8[16]
}

DXB {
	ROUTING_HEADER: RoutingHeader,
	optional UNENCRYPTED_SIGNATURE: Uint8[192],
	optional ENCRYPTED_SIGNATURE: Uint[x] # used instead SIGNATURE to hide identity of signing endpoint (when using ON_BEHALF_OF)
	# optional start signed part:
	optional BLOCK_HEADER: BlockHeader
	# optional start encrypted part:
	ENCRYPTED_FLAGS: Uint8
		DEVICE_TYPE: ENCRYPTED_FLAGS & 0b11110000
	optional ON_BEHALF_OF: Endpoint,
	BODY: DXBBody
}

9.3 The Block Header

The Block Header is part of the signed and encrypted part. If the block is signed, the header cannot be altered, and it can't be read by non-receiving parties if the block is encrypted.

Name	Start	End	Size	Content	Description
Scope ID	0	4	4	SID: Uint32	Scope ID, unique for a certain sender for a certain period of time
Scope Block Index	4	6	2	BLOCK_INDEX: Uint16	Index of the block within the current scope
Scope Block Inc	6	8	2	SIZE: Uint16	Incremented for each block of a scope
Type	8	9	1	TYPE: Uint8	Block type. See Block Types
Flags	9	10	1	FLAGS: Uint8	executable, end of scope, device type
Timestamp	10	18	8	TIME: Uint64	Time in ms since 2022-01-22 (to be changed)
